Windproof Roller Blinds
ZT90 Motorized Windproof Roller Blind
Motorized side-rail guided windproof roller blind (model ZT90) with aluminium alloy track and bottom rail, windproof grade 8, fabric light transmittance from 2% to full blackout, and Wi-Fi (TUYA) motor control. Catalogue sizes: 0.65-2.6 m width, up to 2.5 m height.
System Overview
The ZT90 is a motorized windproof roller blind for patios, pergolas and other outdoor spaces. The fabric runs inside aluminium side rails that lock it into place, keeping the surface stable in windy conditions. The catalogue lists operating sizes from 0.65 m to 2.6 m in width and up to 2.5 m in height, with an aluminium alloy track and bottom rail.
Specifications
Model | ZT90 |
Track material | Aluminium alloy |
Bottom rail material | Aluminium alloy |
Fabric material | Polyester / Glass fiber / PVC, etc. |
Type of fabric | Shading / Light transmission |
Light transmittance options | 2% 3% 5% 6% 14% 30% |
Blackout fabric | Available |
Aluminum frame colors | White / Coffee / Dark grey |
Min width | 0.65 m |
Max width | 2.6 m |
Max height | 2.5 m |
Motor | AG40RE-10/14, 10 Nm, 110-230 V AC |
Control | Remote / Wi-Fi (TUYA app) |
Windproof grade | 8 |
FR standard | B1 |
Construction and Specifications

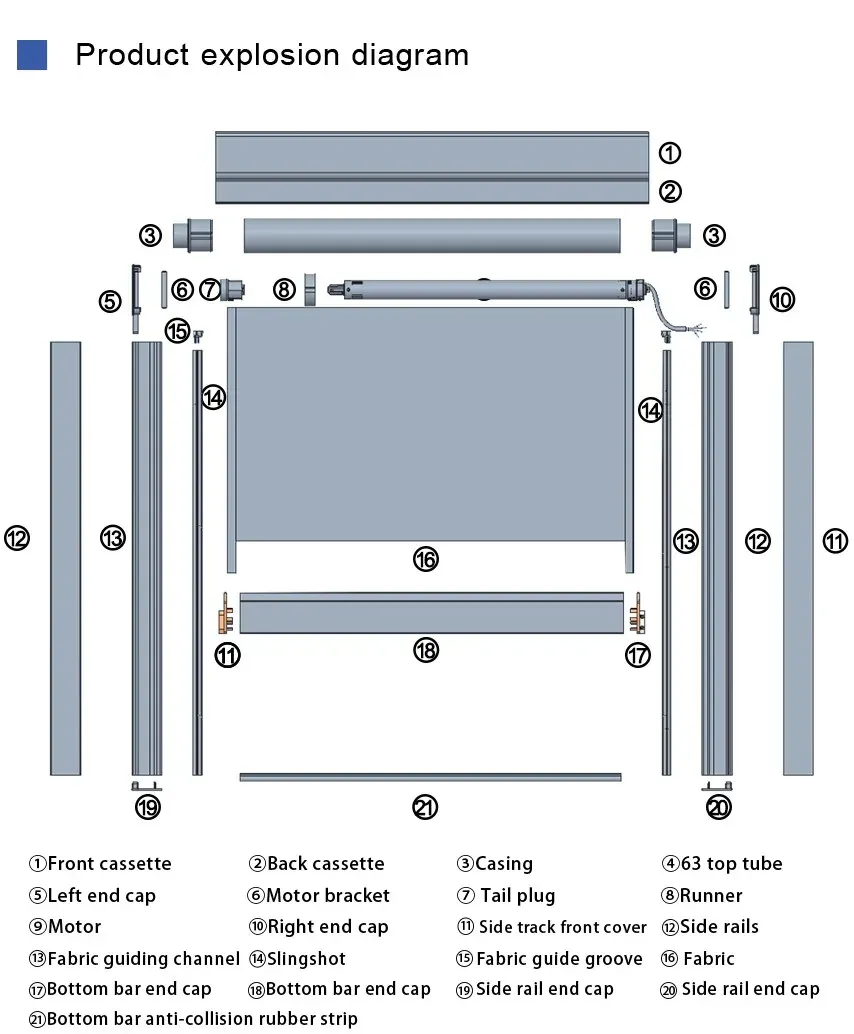

The exploded view below shows the complete ZT90 assembly: front and back cassette, Ø63 top tube, left and right end caps, motor bracket, runner, side rails with fabric guiding channel, fabric, and a bottom bar with anti-collision rubber strip.
Fabric and Frame Options
Choose the level of light control for each elevation: fabric light transmittance options are 2%, 3%, 5%, 6%, 14% and 30%, with full-shade blackout fabrics also available. Fabric materials include polyester, glass fiber and PVC. The aluminium frame is offered in white, coffee and dark grey to match the building facade.

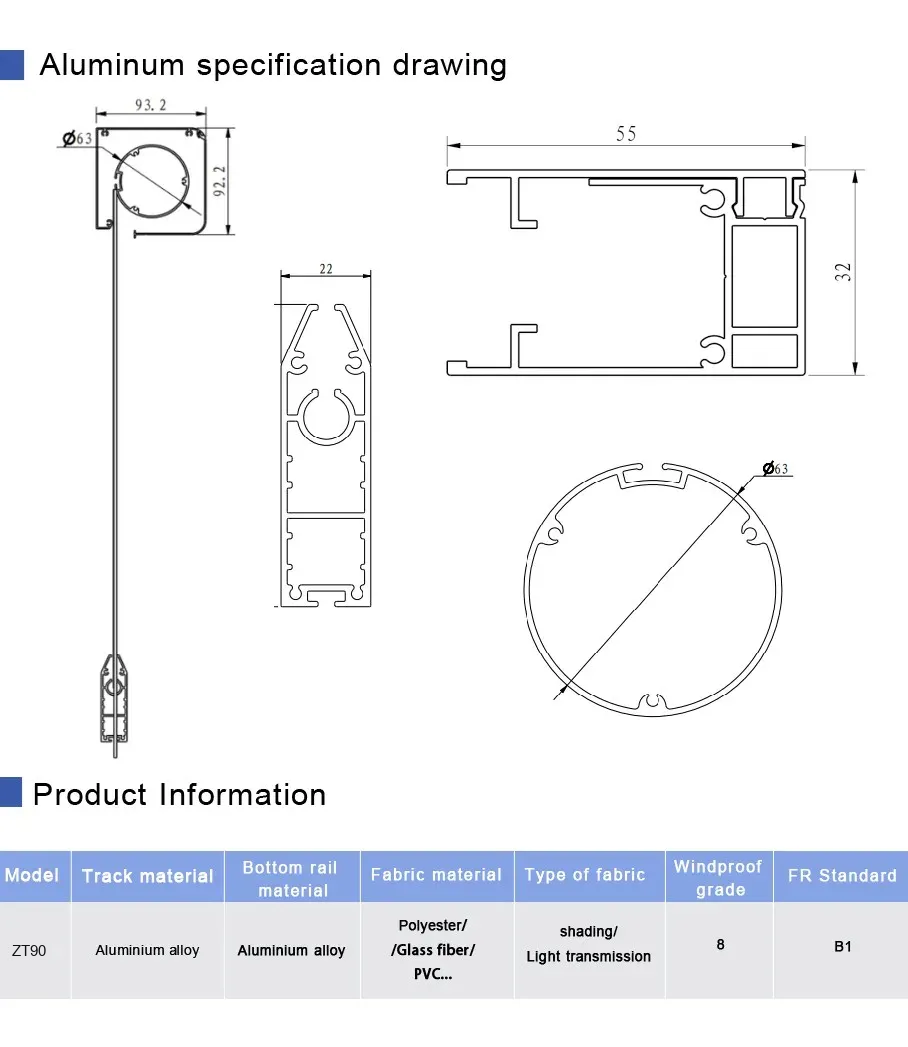

Profile and Product Information
Profile cross-section drawings and the catalogue product information table for the ZT90 are shown below.

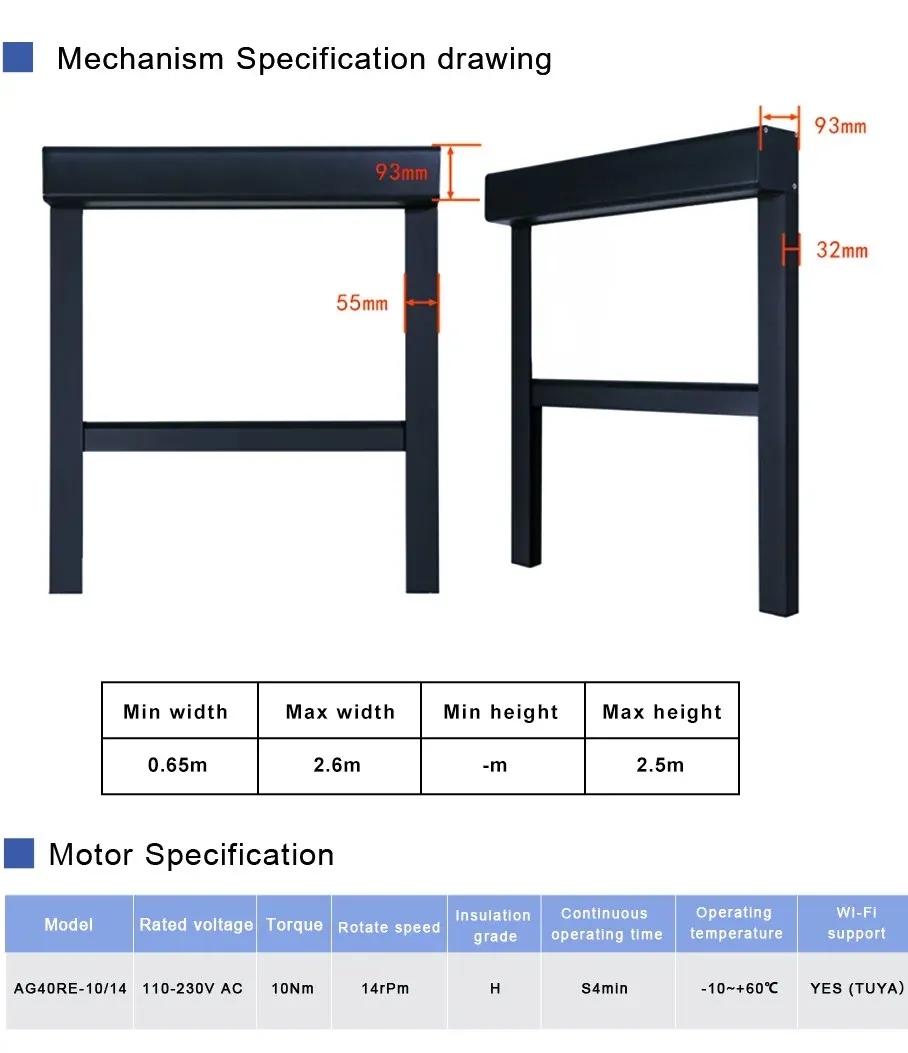

Motor and Control
Each blind is driven by an AG40RE-10/14 motor with 10 Nm torque and 110-230V AC rated voltage, continuous operating time S4 min, with an operating range of -10 to +60 degrees Celsius. Control is by remote control or Wi-Fi through the TUYA app.
Request a Quote
Send us the width and height of each opening, the preferred fabric transmittance and frame color, and our team will confirm the configuration and provide a quotation. Projects with multiple windows or whole-house shading schedules are welcome.
