Windproof Roller Blinds
ZT170 2-in-1 Motorized Windproof Roller Blind
Motorized side-rail guided windproof roller blind (model ZT170) with aluminium alloy track and bottom rail, windproof grade 8, fabric light transmittance options including blackout, and Wi-Fi (TUYA) motor control. Catalogue sizes: -m to 5m in width and up to 4m in height.
System Overview
The ZT170 is a motorized windproof roller blind for patios, pergolas and other outdoor spaces. The catalogue lists operating sizes from -m to 5m in width and up to 4m in height, with an aluminium alloy track and bottom rail. The 2-in-1 design combines motorized and manual operation.
Specifications
Model | ZT170 |
Track material | Aluminium alloy |
Bottom rail material | Aluminium alloy |
Fabric material | Polyester / Glass fiber / PVC, etc. |
Type of fabric | Shading / Light transmission |
Light transmittance options | 1% 2% 3% 5% 6% 10% 14% |
Blackout fabric | Available |
Aluminum frame colors | White / Light grey / Brown / Dark grey / Black |
Min width | — |
Max width | 5 m |
Max height | 4 m |
Motor | AM45, 20 N, 110-240 V AC |
Control | Remote / Wi-Fi (TUYA app) |
Windproof grade | 8 |
FR standard | B1 |
Construction and Specifications

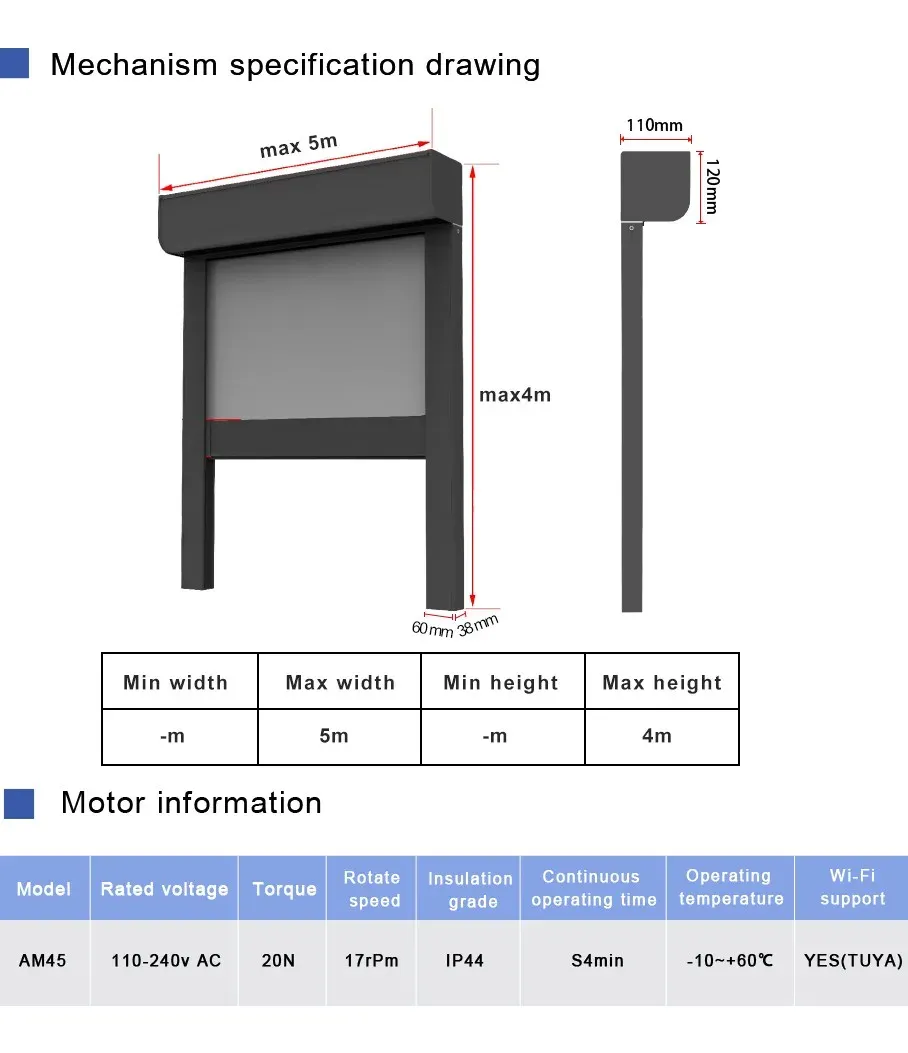

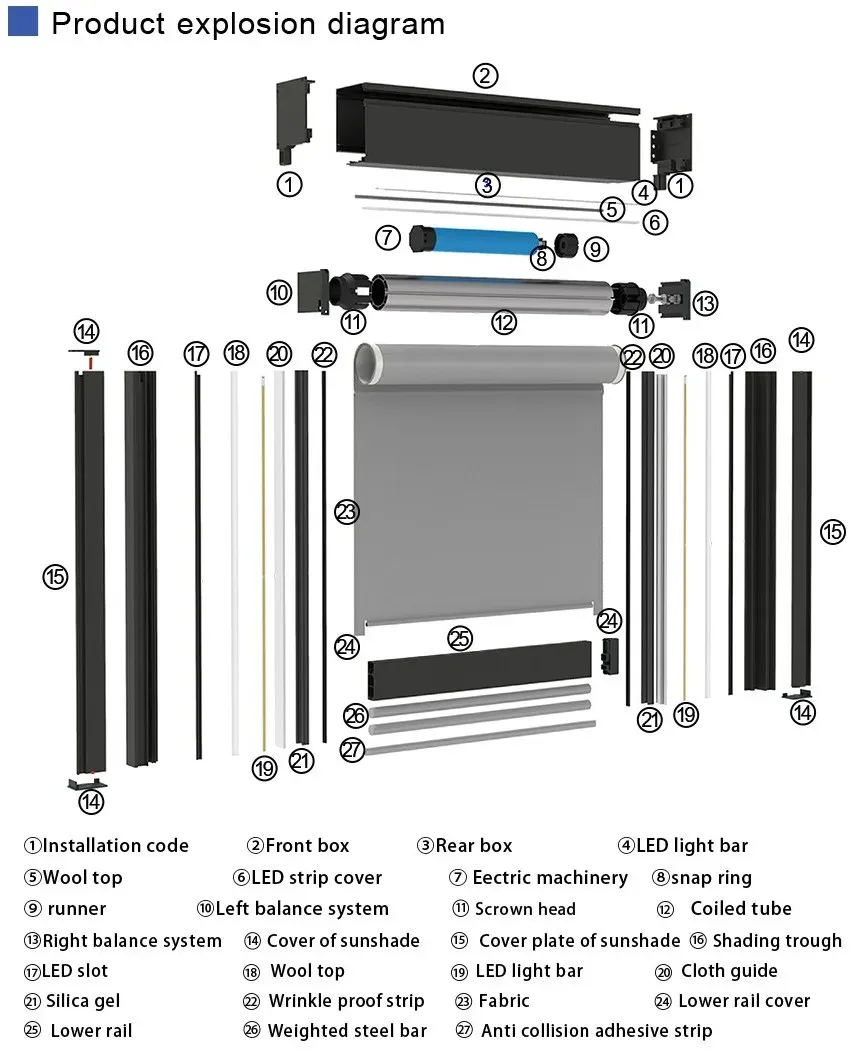

The exploded view below shows the complete ZT170 assembly with every component labelled, followed by the mechanism specification drawing, size table and motor specification.
Fabric and Frame Options
Fabric light transmittance options are 1% 2% 3% 5% 6% 10% 14%, with full-shade blackout fabrics also available. Fabric materials include polyester, glass fiber and PVC. The aluminium frame is offered in white, light grey, brown, dark grey and black.
Profile and Product Information

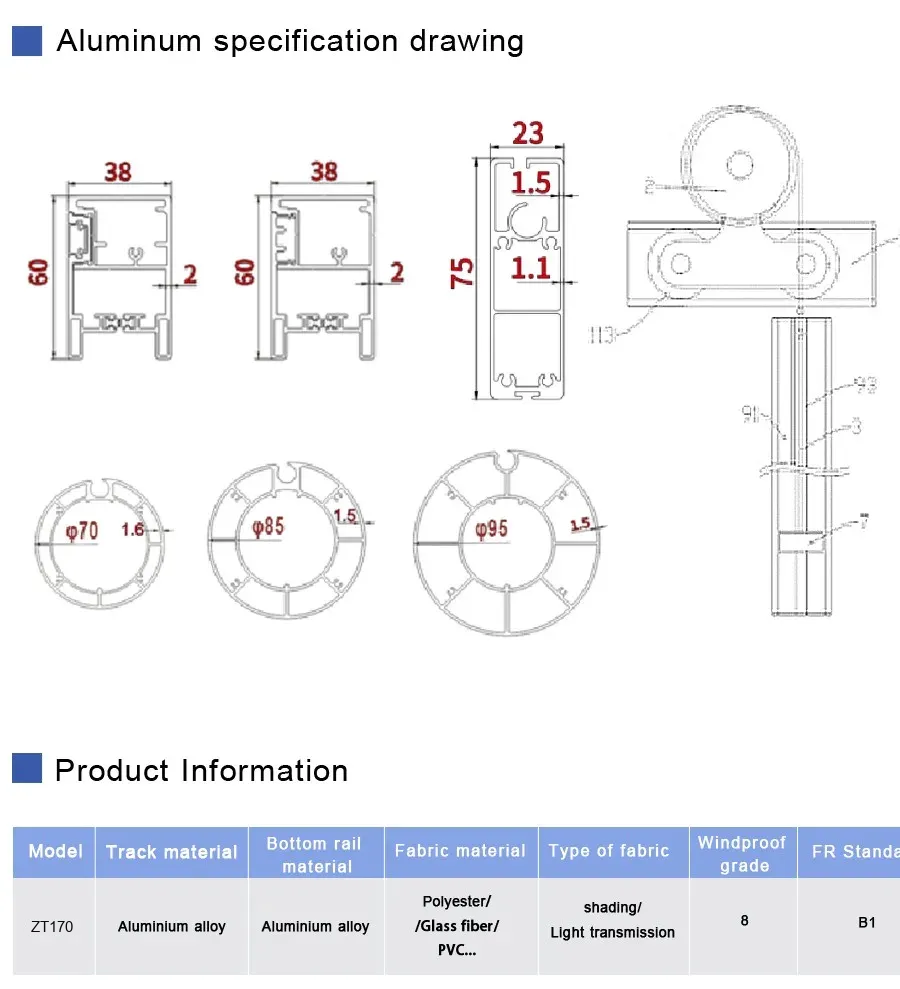

Profile cross-section drawings and the catalogue product information table for the ZT170 are shown below.
Motor and Control
Each blind is driven by an AM45 motor with 20N torque and 110-240v AC rated voltage, continuous operating time S4min, with an operating range of -10~+60℃ degrees Celsius. Control is by remote control or Wi-Fi through the TUYA app.
Request a Quote
Send us the width and height of each opening, the preferred fabric transmittance and frame color, and our team will confirm the configuration and provide a quotation. Projects with multiple windows or whole-house shading schedules are welcome.
